Your temperature gauge climbs. You pull over, top up the coolant, and carry on. A week later, it happens again. If this pattern sounds familiar, the coolant isn’t the problem — it’s a symptom of something deeper, and your cylinder head may be at the centre of it.
Repeated overheating that doesn’t resolve with top-ups is one of the clearest signals that your engine’s cooling system has lost its integrity somewhere. If you’re at that point, the most useful next step is to book a cylinder head inspection in Pretoria before the situation develops further.
This article walks you through what the cylinder head actually does, why overheating puts it at risk, and how a proper inspection identifies the root cause without unnecessary guesswork or replacements.
The Role the Cylinder Head Plays in Your Engine
The cylinder head sits at the top of the engine block, sealing the combustion chambers and housing the valves, camshaft, and in most modern engines, the fuel injectors. It’s also a critical junction for coolant flow; channels cast into the head carry coolant around the combustion chambers to keep temperatures in check.
When everything works correctly, heat is managed, combustion is sealed, and coolant stays exactly where it should. When the cylinder head is compromised, those boundaries begin to break down.
How Overheating Affects the Cylinder Head Over Time
Aluminium, the material used in most modern cylinder heads, expands under heat. A single overheating event stresses the metal. Repeated overheating compounds that stress, and the consequences tend to follow a predictable pattern.
The head gasket, which seals the joint between the cylinder head and engine block, is often the first component affected. A compromised gasket allows combustion gases to enter the cooling system, coolant to enter the combustion chamber, or both. This is why the temperature gauge keeps climbing even after a coolant top-up; the system can’t hold pressure, and the coolant either escapes or gets contaminated with gases that prevent it from circulating properly.

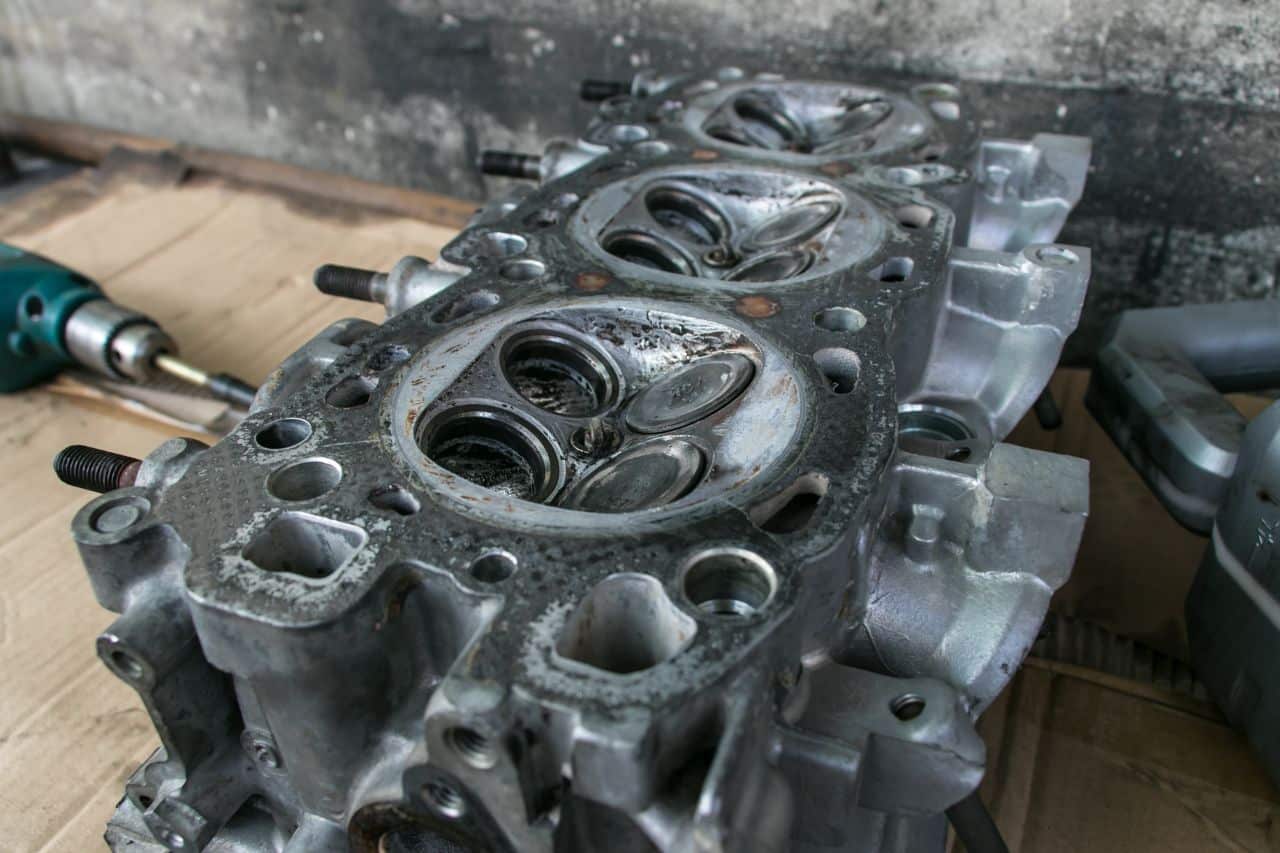

Left unaddressed, gasket failure progresses to the head itself. Warping along the sealing surface is common after repeated overheating. In more severe cases, cracks develop, particularly around the valve seats and coolant passages where thermal stress is highest.
Symptoms That Point Toward the Cylinder Head
Overheating alone is enough reason to have the cylinder head inspected. But several accompanying symptoms sharpen the picture considerably:
White smoke from the exhaust, particularly on a warm engine, often indicates coolant burning in the combustion chamber. Milky or discoloured oil on the dipstick or inside the oil filler cap suggests coolant has entered the lubrication system. Unexplained coolant loss with no visible external leak points to internal consumption. A sweet smell from the exhaust or around the engine bay is another indicator that coolant is going somewhere it shouldn’t. A slipping water pump impeller or jammed thermostat could cause unexplained over heating with no visible leaks.
Any one of these alongside a recurring high temperature reading warrants prompt attention.
What a Thorough Cylinder Head Inspection Covers
A thorough cylinder head inspection doesn’t begin with assumptions. It begins with evidence.
A compression test is carried out first to establish a drop in compression. If the compression results are out of specification the further investigations are required. Once the head is removed, technicians clean it down before any assessment takes place. Surface contamination from a failed gasket or combustion residue can obscure cracks and make surface measurements unreliable.
The sealing surface is then measured for flatness using a precision straight edge and feeler gauges. Even small deviations from flat affect the head gasket’s ability to seal correctly once refitted. A surface that has warped beyond the manufacturer’s serviceable limit requires resurfacing on a milling machine, or in more severe cases, replacement.
Crack detection follows. Magnetic particle testing or pressure testing, depending on the head material and suspected failure location, is used to identify cracks that aren’t visible to the naked eye. Cracks around valve seats, combustion chambers, and coolant passages are the most common findings after repeated overheating events.
The valves, guides, and seats are inspected for wear and recession. Valve stem seals are assessed. Port surfaces and coolant passages are checked for corrosion or blockage. Each of these findings informs what the overhaul will involve, no more, no less.
Why Inspection Comes Before Any Work Begins
One of the most common frustrations vehicle owners experience with engine work is being quoted for parts and labour before anyone has confirmed what’s actually wrong. A head gasket replacement carried out without inspecting the basics i.e. the waterpump, radiator, thermostat head surface is a repair that may need to be redone within months if underlying warping isn’t corrected first.
A proper inspection changes this. It gives technicians a factual basis for the work required and gives you a clear explanation of what was found and why each element of the repair is necessary. There are no unnecessary replacements, and no surprises after the work is done.
The Advantage of Acting While the Signs Are Fresh
The difficulty with cylinder head problems is that they rarely stay contained. Coolant in the combustion chamber accelerates wear on cylinder walls and piston rings. Combustion gases in the cooling system corrode internal surfaces. Oil contaminated with coolant loses its lubricating properties and puts bearings and journals at risk.
An issue that begins as a head gasket repair can develop into a full engine rebuild if the warning signs are overlooked long enough. Acting when the symptoms first become persistent is almost always the more straightforward and cost-effective decision. Preventative maintenance is by far more cost effective.
Get a Clear Answer Before the Problem Grows
If your vehicle is running hot repeatedly and coolant top-ups aren’t holding the situation, the cylinder head deserves a proper look.
Moreleta Service Centre has over 25 years of experience carrying out cylinder head inspections and overhauls in Pretoria. As an RMI/MIWA 5-star accredited workshop, every repair is backed by a 6-month/15,000 km warranty on labour, and you’ll know exactly what was found before any work is authorised.
Get in touch with the team to arrange an assessment.
